Installation Guide

Quick Start with Docker Compose (Recommended)

The easiest way to get started with the GEMINI App is using Docker Compose. This method automatically handles all dependencies and configurations.

Prerequisites

Install Docker Desktop for your operating system:

Installation Steps

Clone the repository

git clone https://github.com/GEMINI-Breeding/GEMINI-App.git
cd GEMINI-App

Create the data directory:
```
mkdir ~/GEMINI-App-Data
```

Optional: Customize the environment variables

Open the .env file in the GEMINI-App directory to customize ports and data directory

# .env file for GEMINI-App
# MapBox Access Token (required for map functionality)
REACT_APP_MAPBOX_TOKEN=your.mapbox.access.token.here

# Port Configuration
REACT_APP_FRONT_PORT=3000
REACT_APP_FLASK_PORT=5050
REACT_APP_TILE_SERVER_PORT=8091
PORT=$REACT_APP_FRONT_PORT

# Application Data Directory (absolute path)
REACT_APP_APP_DATA=$HOME/GEMINI-App-Data

Notes:

Get your MapBox token from MapBox Access Tokens
Comments must be on separate lines (inline comments are not supported)
Use absolute paths for REACT_APP_APP_DATA
Default values will be used if .env file is not present

Run the application

# CPU version (default)
docker compose up --pull always

# GPU version (if nvidia-smi works on host)
docker compose -f docker-compose-gpu.yml up --pull always

Note: The --pull always flag ensures you're always using the latest Docker images.

Access the application:
- Frontend: http://localhost:3000 (or your configured REACT_APP_FRONT_PORT)
For debugging:
- Backend API: http://localhost:5050 (or your configured REACT_APP_FLASK_PORT)
- Tile Server: http://localhost:8091 (or your configured REACT_APP_TILE_SERVER_PORT)

Docker Configuration

Understanding docker-compose.yml

The docker-compose.yml file defines how the GEMINI App runs in Docker. Here's what each section does:

services:
  app:
    image: paibl/gemini-breeding:latest  # Pre-built Docker image
    build:
      context: .
      dockerfile: Dockerfile
    env_file:
      - ./gemini-app/.env  # Load environment variables
    ports:
      - "${REACT_APP_FRONT_PORT:-3000}:${REACT_APP_FRONT_PORT:-3000}"   # Frontend
      - "${REACT_APP_FLASK_PORT:-5050}:${REACT_APP_FLASK_PORT:-5050}"   # Backend
      - "${REACT_APP_TILE_SERVER_PORT:-8091}:${REACT_APP_TILE_SERVER_PORT:-8091}"  # Tile Server
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock  # Allow Docker-in-Docker
      - ${REACT_APP_APP_DATA:-~/GEMINI-App-Data}:/root/GEMINI-App-Data  # Data directory
      - ./gemini-app/.env:/app/gemini-app/.env:ro  # Environment variables (read-only)

Key Configuration Parameters:

Ports: Maps host ports to container ports
- Format: "host_port:container_port"
- Default ports: 3000 (frontend), 5050 (backend), 8091 (tile server)
- Change these if ports are already in use on your system
Volumes:
- Docker socket: /var/run/docker.sock enables Docker-in-Docker for OpenDroneMap
- Data directory: ~/GEMINI-App-Data stores all application data (images, orthomosaics, models)
- Environment file: .env file is mounted as read-only
Environment Variables: Loaded from .env file with fallback defaults

For more detailed configuration options, see the docker-compose.yml file.

Updating the Application

To update to the latest version:

cd GEMINI-App
docker compose down
docker compose up --pull always

The --pull always flag will automatically download the latest Docker images before starting the containers.

Rebuilding Docker Images

If you've made local changes and need to rebuild:

# Rebuild and start
docker compose up --build

# Or rebuild specific services
docker compose build
docker compose up

Platform-Specific Notes

Windows

Install WSL2 for better Docker performance. Install the default Ubuntu distribution to avoid compatibility issues.
Ensure Docker Desktop is configured to use WSL2 backend.
Follow the instructions for Configuring WSL2 with Docker Desktop.
The data directory path in WSL2: ~/GEMINI-App-Data (equivalent to /home/yourusername/GEMINI-App-Data)
In your .env file, use Linux-style paths when running in WSL2

MacOS

Install XCode and CLI Tools for development.
Note: The GEMINI App attempts to find an NVIDIA GPU for OpenDroneMap orthomosaic generation. Due to the lack of a compatible GPU on MacOS systems, the following error is expected: docker: Error response from daemon: could not select device driver "" with capabilities: [[gpu]]. The app will automatically fall back to CPU processing, which may result in longer processing times.

Linux

The recommended distribution for the GEMINI App is Ubuntu. Other distros may encounter compatibility issues.
If your system has an NVIDIA GPU for orthophoto generation:
Install the NVIDIA Container Toolkit
Follow the relevant setup instructions
Use the GPU-enabled Docker Compose file:

docker compose -f docker-compose-gpu.yml up --pull always

If the NVIDIA Container Toolkit is not installed, the following error will appear during orthophoto generation:

docker: Error response from daemon: could not select device driver "" with capabilities: [[gpu]].

The app will fall back to CPU processing automatically.

Advanced: Native Installation for Developers

For developers who want to run the application natively without Docker:

Prerequisites

Git
Python 3.8+
Node.js 18
Docker Desktop (for OpenDroneMap container)

Installation Steps

Clone the repository:

git clone https://github.com/GEMINI-Breeding/GEMINI-App.git
cd GEMINI-App

Initialize git submodules:

git submodule update --init --recursive

Set up Flask backend:

cd GEMINI-Flask-Server
./install_flask_server.sh
cd ../

Install Node Version Manager (NVM):

curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.39.5/install.sh | bash
source ~/.bashrc

Install Node 18:
```
nvm install 18
nvm use 18
```

Install frontend dependencies:

cd gemini-app
npm install --legacy-peer-deps  # Fix upstream dependency conflicts

Running the App

Ensure Docker Desktop is running before starting the GEMINI App.

In GEMINI-App/gemini-app:

# Run development server (frontend and backend concurrently)
npm run gemini

# Run frontend only
npm run front

# Run Flask server only
npm run server

Updating Native Installation

Option 1: Auto-Update using startup script

cd GEMINI-App
./startup.sh

Option 2: Manual update using git

cd GEMINI-App

# Stash any local changes
git stash
cd GEMINI-Flask-Server
git stash
cd ..

# Pull changes
git fetch
git pull

# Update submodules
git submodule update --init --recursive

Troubleshooting

Container fails to start:

Ensure Docker Desktop is running and has sufficient resources allocated (recommended: 4GB RAM minimum)
Check if .env file is properly formatted (no inline comments)

Port conflicts: - If ports 3000, 5050, or 8091 are already in use, modify the port mappings in .env file - Example: Change REACT_APP_FRONT_PORT=3000 to REACT_APP_FRONT_PORT=3050

Volume mount issues:

Verify that ~/GEMINI-App-Data exists and has proper permissions
Check that the path in .env file is absolute, not relative
On Windows WSL2, ensure you're using Linux-style paths

Environment variable not loading:

Ensure .env file is in the correct location (GEMINI-App/ directory)
Check for syntax errors (comments must be on separate lines)
Restart containers after modifying .env: docker compose down && docker compose up

Native Installation Issues

Failed to upload file error:

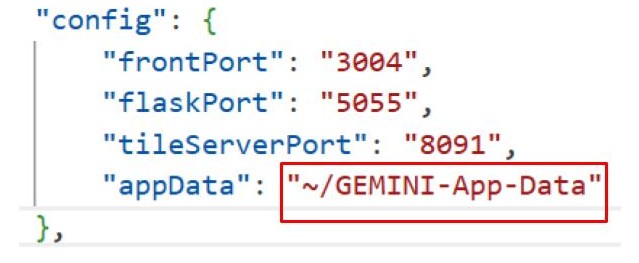

Check that the path in package.json points to an existing and accessible GEMINI-App-Data directory
Verify the Flask Server started successfully
Check terminal logs for Flask Server errors

Terminal cleared during npm start:

If you cannot scroll up to see previous commands after running npm start gemini, Docker is not running properly
Restart Docker Desktop and try again

Orthophoto generation failures:

Manually delete the ~/GEMINI-App-Data/temp directory
Try generation again
Check Docker logs for OpenDroneMap container errors

farm-ng-core installation error (MacOS):

If you see: error: variable length arrays in C++ are a Clang extension [-Werror,-Wvla-cxx-extension]
Open setup.py inside the farm-ng-core directory
Remove "-Werror" from the extra_compile_args list
Retry installation

WSL2-specific issues (Windows):

Install libgl1 library: sudo apt-get update && sudo apt-get install libgl1
Add user to docker group: sudo usermod -aG docker $USER
Apply changes: newgrp docker
Verify Docker context: docker context use default

Getting Help

If you encounter issues not covered here:

Check the Full Documentation
Review GitHub Issues
Create a new issue with detailed error logs and system information
